Candle Filter

  • Filter Area

    1-60㎡

  • Material

    stainless steel

  • Price

    factory price
Leave Message For Price Inquiry Online

Product Description

Candle filters are an alternative approach for removing fine particles. Candle filters provide for thin-cake pressure filtration, cake washing, drying, reslurry, and automatic discharge as well as heel filtration in an enclosed pressure vessel. Units are available from 0.17 m2 up to 200 m2 of filter area per vessel.

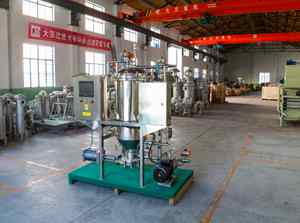

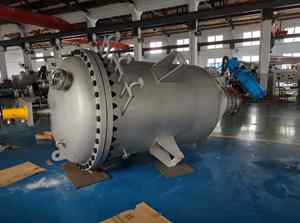

Candle filter is a fully closed filtration system, the main components including material tank, gas tank, filter pump, candle filter, pipeline, valve, PLC electrical control system, etc. The filtration process is completely closed, leak-free, and free of any environmental pollution. It can realise a one-time automatic filtration of the whole process, filter cake washing, air-drying, while the use of gas back blowing function for cake discharge. The entire process is fast and pollution-free for maximum productivity.

Widely used in: food industry (fructose saccharification liquid, wine, edible oil filtration, etc.), Pharmaceutical industry (Bioengineering, biopharmaceutical industry, etc.) , Chemical industry (waste plastics, waste tires, oil refining, titanium dioxide, black carbon powder, etc.), and other industries.

Click to expand to view the data
Technical Parameters
Model Cartridge QTY Cartridge Size（mm） Filtering Area(㎡） Capacity（t/h） Housing Volume(L) Inlet（DN） Cake Discharging Outlet（DN） Housing Diameter（mm） Total Height（mm） Height of Housing（mm） Height of Waste Discharging Oulet（mm） Dimension（mm）
DZZS-1 7 90*500 1 2.2 140 25 150 456*3 1902 1448 500 φ1000
DZZS-1.5 10 90*500 1.5 3.3 180 25 200 508*4 1928 1474 500 φ1000
DZZS-2 7 90*1000 2 4.4 220 32 150 456*3 2402 1948 500 φ1200
DZZS-3 10 90*1000 3 6.6 280 40 200 508*4 2428 1974 500 φ1200
DZZS-4 14 90*1000 4 8.8 400 40 200 608*4 2502 1868 500 φ1300
DZZS-6 19 90*1000 6 13.2 560 50 250 708*5 2578 1944 500 φ1400
DZZS-8 24 90*1000 8 18 740 65 250 808*5 2644 2010 500 φ1500
DZZS-12 40 90*1000 12 26 1200 65 300 1010*5 2854 2120 600 1300*1440
DZZS-18 64 90*1000 18 40 1800 80 400 1212*6 2904 2170 600 1440*1540
DZZS-30 106 90*1000 30 66 3000 100 500 1616*8 3440 2840 600 1800*1940
DZZS-40 140 90*1000 40 88 3815 150 500 1820*10 3560 2960 600 2000*2140
DZZS-60 190 90*1000 60 132 5700 150 500 2220*10 3700 3100 600 2440*2540


Full Service System

As leading filter press manufacturer and supplier with 16 years histoy, we have build full set of service system, mainly including pre-sales service, sales service and after-sales service.

  • Pre-sales Service

    After understanding the customer’s requirements for equipment, cost budget and other aspects in detail, we will recommend professional and customized solution for customers.

  • Sales Service

    Communicate with customers timely, and continuously improve the product solution in accordance with customer requirements.

  • After-sales Service

    We have mature after-sales service management system, inlcuding product installation, tech training service, spare parts, on-site maintenance, etc.

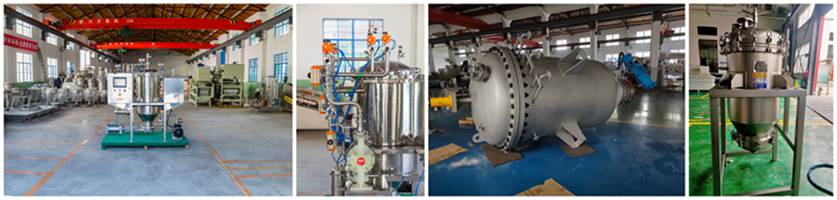

Successful cases
