Filter Plate

  • Materials

    polypropylene

  • Size

    full size

  • Price

    factory price
Leave Message For Price Inquiry Online

Product Description

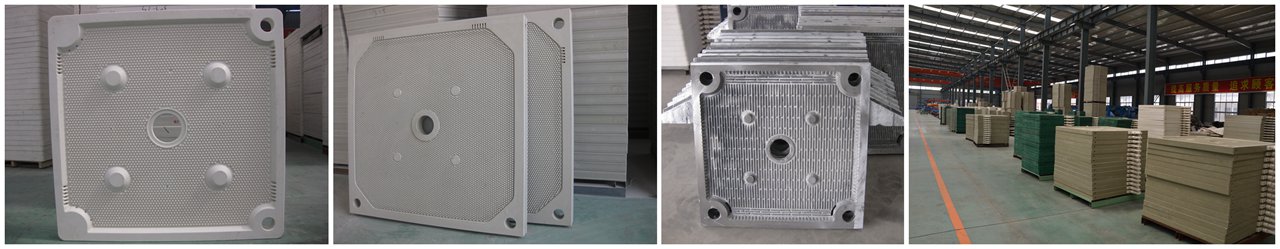

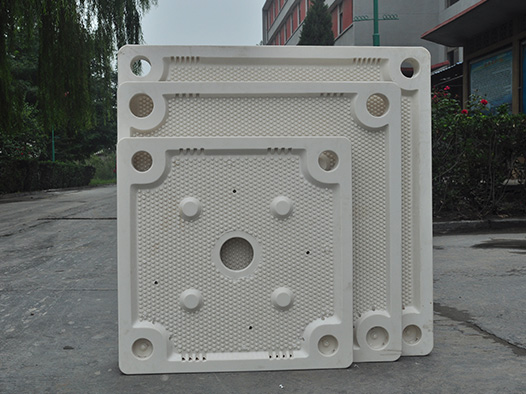

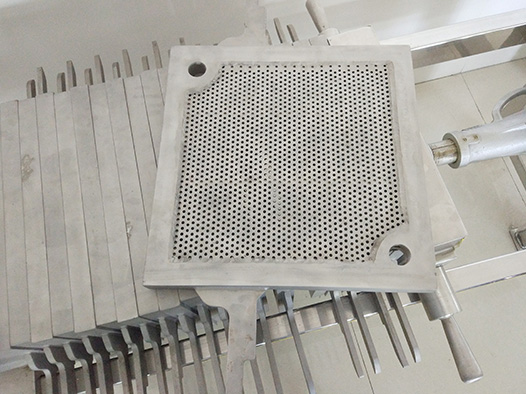

The filter plate is one of the main part of the filter press, and and plays a important role in the solid-liquid separation process. According to the different material, the filter plate can be divided into polypropylene filter plate, cast iron filter plate and stainless steel filter plate. according to the structure, filter plate mainly includes chamber filter plate and membrane filter plate. It is featured with flexibility, toughness, rigidity. The maximum feeding pressure of the filter plate is 1.6Mpa. With the properties of high temperature and high pressure resistance, antisepsis and airtight, short filtering cycle, good processing effect and low humidity of the cake.

They are suitable to various work conditions in mining, effulent treatment, chemical industry, oil extraction, ceramic, food&beverage, gelatin etc. The plate material can be RPP, glass fiber reinforced PP, cast iron, stainless steel etc. Our plates have advantages of wide range of adaptation, good corrosion resistance, wearing resisting, long service life etc.

As leading filter press manufacturer and supplier with 16 years history in China, we have types and full models filter plates for sale. We also have full models filter presses for sale.


Advantages of Filter Plate

Large pressing force(17-20MPa) can avoid leakage effectively.

Hydraulic station adopts ABB motor, it is steady in operation.

Long service life, wide application. Reduce moisture content to meet standard.

Factory-direct sale, fast delivery and shipping, full service.

Auto closing and auto opening.

Click to expand to view the data
Technical Parameters
Item Model O.D.(mm) I.D.(mm) Filter Chamber Thickness(mm) Plate Thickness（mm） Diameter of Side holes（mm） Diameter of central hole（mm） Thickness of central hole（mm） Distance of Side hole （mm） Distance of support point(mm) Weight(kg）
Chamber plate 320 380 320 30 45 35 50 11 290 4.5
450 505 450 30 50 40 80 27 405 8.5
630 705 630 30 50 60 100 16 560 280 17
800 800 725 30 60 60 100 24 665 270 27
870 870 800 30 55 70 100 18 730 355 27
900 900 820 30 60 60 100 20 775 390 39
1000 1000 920 30 60 60 120 28 860 440 39
1250 1250 1150 30 65 75 150 35 1100 510 67
1500 1500 1390 30 70 80 180 45 1330 635 100
2000 2000 1860 30 85 100 200 40 1790 200
Plate and Frame plate 320 380 320 30 30 35 290 7 290 4+2.5
450 505 430 30 30 50 400 12 400 7+2.6
630 710 630 30 30 65 550 23.5 550 14+5
890 890 790 30 35 65 710 38 710 24+8
1000 1000 900 30 35 65 830 52 830 34+9.5
Diaphragm plate  (chamber plate) 870 870 770 30 65 50 100 40 750 295 38
1000 1000 890 30 70 60 100 40 860 310 52
1250 1250 114 35 75 65 120 40 1100 415 85
1500 1500 1380 35 80 90 150 40 1330 450 125
2000 2000 1860 40 85 200
CGR plate 800 800 680 25 60 47 90 35 665 275 33
450 500 420 25 50 30 55 24 405
Cast Iron plate 1000 1000 35

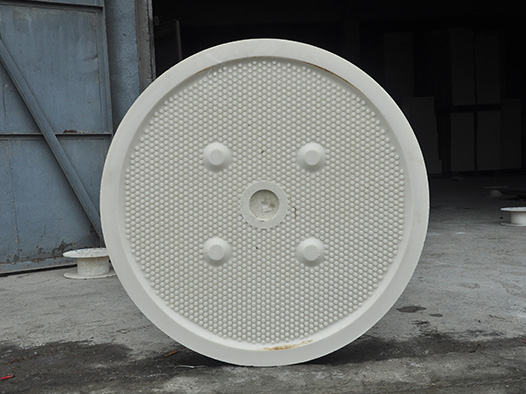

Round plate 800 810 52


Full Service System

As leading filter press manufacturer and supplier with 16 years histoy, we have build full set of service system, mainly including pre-sales service, sales service and after-sales service.

  • Pre-sales Service

    After understanding the customer’s requirements for equipment, cost budget and other aspects in detail, we will recommend professional and customized solution for customers.

  • Sales Service

    Communicate with customers timely, and continuously improve the product solution in accordance with customer requirements.

  • After-sales Service

    We have mature after-sales service management system, inlcuding product installation, tech training service, spare parts, on-site maintenance, etc.
