Filter Precision
0.1-100μmPressure
0.1-0.5MpaMax Flow

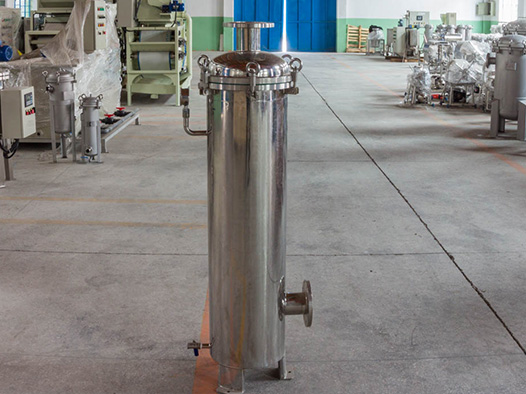

30-600t/hThe high flux security filter(precision filter) manufactured by Dazhang Filtration ,which use the high flux filter element instead of the PP melt-blown filter element used in the traditional filter. The Maximum output water capacity of single high flux filter element can reach to 50m3/H, which means that the filter housing volume can be smaller and more compact, also the replacement of the filter element is easier and faster, and the operating cost is lower.
Widely applicable to: electric power, reverse osmosis pre-stage, petrochemical, fine chemicals, food and beverage, automobile industry, metallurgy, papermaking, medicine, microelectronics, environmental protection water treatment and other industries.
| Model | Cartridge QTY | Filtering Precision（um） | Max.Flow/40 Inches（t/h) | Designed Pressure（Mpa） | Max.Flow/60 Inches（t/h) | Working Pressure（Mpa） | Inlet/Outlet |
| DZDTL-1 | 1 | 0.1-100 | 30 | 1 | 50 | 0.1-0.5 | DN80 |
| DZDTL-2 | 2 | 60 | 100 | DN80 | |||
| DZDTL-3 | 3 | 90 | 150 | DN100 | |||
| DZDTL-4 | 4 | 120 | 200 | DN150 | |||
| DZDTL-5 | 5 | 150 | 250 | DN200 | |||
| DZDTL-6 | 6 | 180 | 300 | DN200 | |||
| DZDTL-7 | 7 | 210 | 350 | DN200 | |||
| DZDTL-8 | 8 | 240 | 400 | DN200 | |||
| DZDTL-10 | 10 | 300 | 500 | DN250 | |||
| DZDTL-12 | 12 | 360 | 600 | DN250 | |||
| DZDTL-14 | 14 | 420 | 700 | DN300 | |||
| DZDTL-16 | 16 | 480 | 800 | DN300 | |||
| DZDTL-18 | 18 | 540 | 900 | DN350 | |||
| DZDTL-20 | 20 | 600 | 1000 | DN400 |
