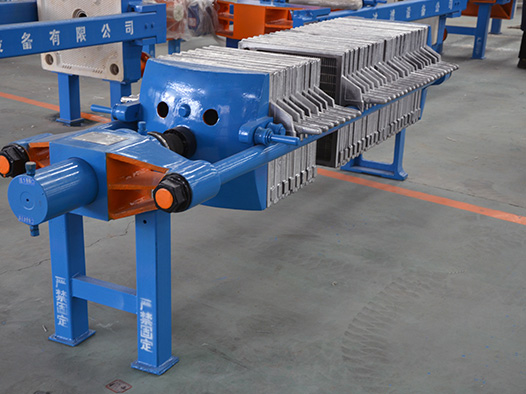

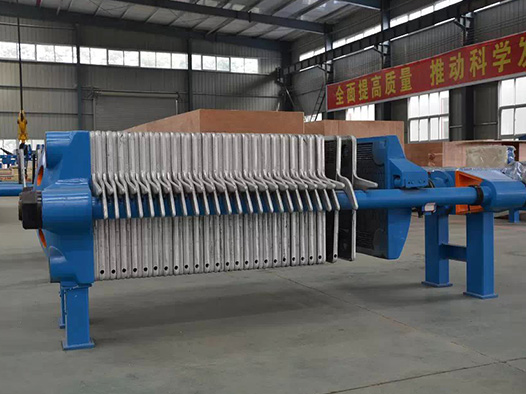

High Temperature Resistant Cast Iron Filter Press

  • Filter Area

    50-500㎡

  • Plate Quality

    28-123

  • Filter volume

    736-8735L
Leave Message For Price Inquiry Online

Product Description

Application: widely applicable for solid-liquid separation in petrochemical, metallurgy, oil and ceramic industries

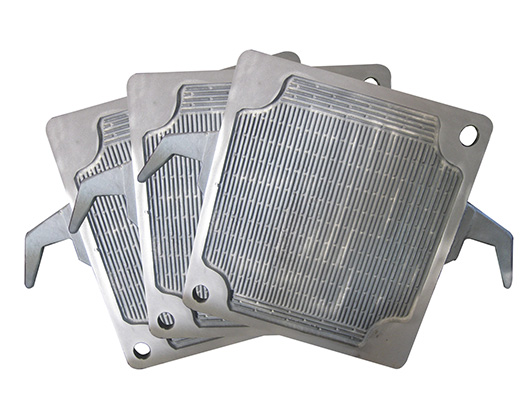

Features: 1. Designed for high temperature materials filtration. 2. The filter plate has high strength, withstands high filtration pressure, and has a long service life. It is widely used in solid-liquid separation in the petrochemical, metallurgical, grease, and ceramic industries.

Need Customized Solution?
Tell Us Your Needs
Click to expand to view the data
Technical Parameters
Model Filter press(m2) Plate size(mm) Cake tdickness(mm) Filter chamber volume(L) Plate NO(pcs) Number frame(pcs) Filtration pressure(Mpa) Weight(Kg) Dimensions L*W*H(mm) Foundation Size(mm)
L B D H
BQ1/320-25 1 380*380 ≥25 13 4 5 0.6 380 1150*760*650 700 150 650 460
BQ2/320-25 2 380*380 ≥25 25 9 10 0.6 500 1390*760*650 940 150 650 460
BQ3/320-25 3 380*380 ≥25 38 14 15 0.6 620 1750*760*650 1300 150 650 460
BQ4/450-25 4 500*500 ≥25 51 9 10 0.6 1060 1780*870*880 1355 180 700 620
BQ6/450-25 6 500*500 ≥25 76 14 15 0.6 1160 2055*870*880 1605 180 700 620
BQ8/450-25 8 500*500 ≥25 102 19 20 0.6 1360 2305*870*880 1855 180 700 620
BQ12/450-25 12 500*500 ≥25 152 29 30 0.6 1530 2785*870*880 2355 180 700 620
BQ16/450-25 16 500*500 ≥25 203 39 40 0.6 1760 3305*870*880 2855 180 700 620
BQ4/450-25 4 500*500 ≥25 51 9 … 0.6 960 1900*870*880 1330 180 700 620
BQ6/450-25 6 500*500 ≥25 76 14 … 0.6 1140 2030*870*880 1580 180 700 620
BQ8/450-25 8 500*500 ≥25 102 19 … 0.6 1460 2280*870*880 1830 180 700 620
BQ12/450-25 12 500*500 ≥25 152 29 … 0.6 1960 2780*870*880 2330 180 700 620
BQ16/450-25 16 500*500 ≥25 203 39 … 0.6 2460 3280*870*880 2830 180 700 620
BQ20/630-25 20 700*700 ≥25 298 24 25 0.6 3300 2750*1150*1100 2270 400 1000 820
BQ30/630-25 30 700*700 ≥25 452 37 38 0.6 4500 3220*1150*1100 2920 400 1000 820
BQ40/630-25 40 700*700 ≥25 496 49 50 0.6 5600 3870*1150*1100 3570 400 1000 820
BY20/630-25 20 700*700 ≥25 298 24 25 0.6 3700 2960*1150*1100 2490 400 1000 820
BY30/630-25 30 700*700 ≥25 452 37 38 0.6 5000 3610*1150*1100 3140 400 1000 820
BY40/630-25 40 700*700 ≥25 595 49 50 0.6 6100 4210*1150*1100 3740 400 1000 820
BQ20/630-25 20 700*700 ≥25 248 24 … 0.6 3400 2600*1100*1100 2300 400 1000 820
BQ30/630-25 30 700*700 ≥25 377 37 … 0.6 4700 3250*1100*1100 2950 400 1000 820
BY40/630-25 40 700*700 ≥25 496 49 … 0.6 5900 3900*1100*1100 3600 400 1000 820
BQ20/630-25 20 700*700 ≥25 248 24 … 0.6 3800 2950*1100*1100 2460 400 1000 820
BQ30/630-25 30 700*700 ≥25 377 37 … 0.6 5200 3580*1100*1100 3110 400 1000 820
BQ40/630-25 40 700*700 ≥25 496 49 … 0.6 6400 4180*1100*1100 3710 400 1000 820
BY40/870-25 40 800*800 25 496 30 31 0.6 6400 3550*1380*1300 2980 500 1250 870
BY50/870-25 50 800*800 25 624 38 39 0.6 7650 3970*1380*1300 3420 500 1250 870
BY60/870-25 60 800*800 25 752 46 47 0.6 8900 4420*1380*1300 3870 500 1250 870
BY70/870-25 70 800*800 25 880 54 55 0.6 10500 4870*1380*1300 4318 500 1250 870
BY80/870-25 80 800*800 25 1008 62 63 0.6 11800 5320*1380*1300 4770 500 1250 870
BQ40/870-30 40 800*800 30 595 30 … 0.6 6750 3500*1380*1300 2950 500 1250 870
BQ50/870-30 50 800*800 30 749 38 … 0.6 8100 3720*1380*1300 3175 500 1250 870
BQ60/870-30 60 800*800 30 902 46 … 0.6 9400 3950*1380*1300 3400 500 1250 870
BQ70/870-30 70 800*800 30 1056 54 … 0.6 11100 4180*1380*1300 3620 500 1250 870
BQ80/870-30 80 800*800 30 1210 62 … 0.6 12500 4400*1380*1300 3850 500 1250 870
Automatic cast iron filter press
Model Filter press(m2) Plate size(mm) Cake tdickness(mm) Filter chamber volume(L) Plate NO(pcs) Filtration pressure(Mpa) Weight(Kg) Dimensions L*W*H(mm) Foundation Size(mm)
L B D H
XZ50/870-30 50 800*800 30 730 38 0.6 9000 4170*1300*1300 2795 500 1250 870
XZ60/870-30 60 800*800 30 883 46 0.6 10800 4560*1300*1300 3195 500 1250 870
XZ70/870-30 70 800*800 30 1036 54 0.6 12000 4960*1300*1300 3595 500 1250 870
XZ80/870-30 80 930*930 30 1194 45 0.6 13800 4775*1400*1400 3420 600 1300 900
XZ90/870-30 90 930*930 30 1323 51 0.6 15500 5245*1400*1400 3750 600 1300 900
XZ100/870-30 100 930*930 30 1479 57 0.6 16800 5915*1400*1400 4080 600 1300 900
XZ80/1200-30 80 1130*1130 30 1226 31 0.6 17600 4100*1620*1520 3020 750 1500 920
XZ90/1200-30 90 1130*1130 30 1379 35 0.6 18800 4340*1620*1520 3260 750 1500 920
XZ100/1200-30 100 1130*1130 30 1532 39 0.6 20800 4580*1620*1520 3500 750 1500 920
XZ120/1200-30 120 1130*1130 30 1838 47 0.6 23500 5060*1620*1520 3980 750 1500 920
XZ150/1200-30 150 1130*1130 30 2300 59 0.6 27500 5780*1620*1520 4700 750 1500 920
XZ180/1200-30 180 1130*1130 30 2758 71 0.6 31500 6500*1620*1520 5420 750 1500 920
