Leaf Filter

  • Filter Area

    2-80㎡

  • Pressure

    0.1-0.4Mpa

  • Material

    Stainless steel
Leave Message For Price Inquiry Online

Product Description

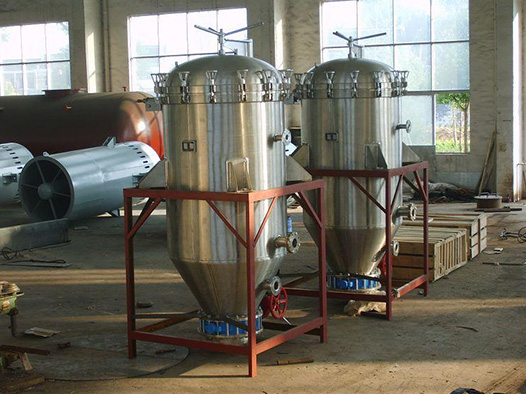

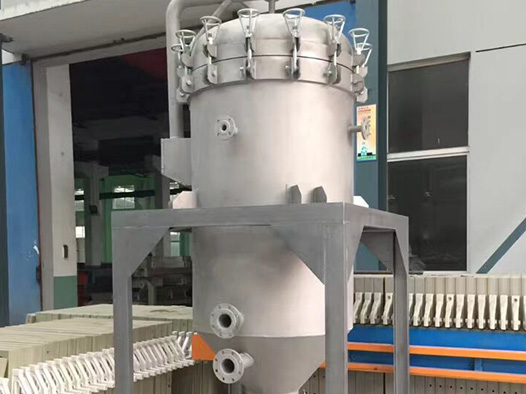

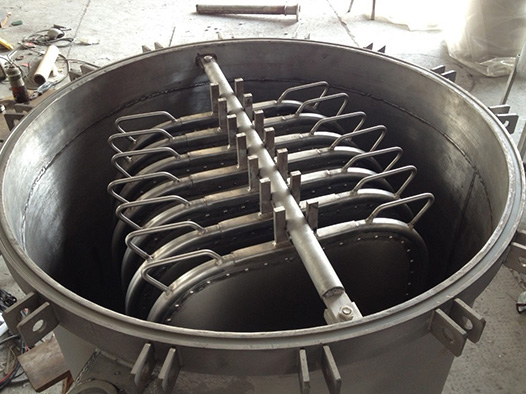

DZBL High-efficiency inclosed plate filter is a kind of leaf filter. It's a new generation of filter machine that our company designed and developed referencing foreign technology. It's a high-efficiency, energy-saving, and closed-operation precision clarification equipment. with characteristics of small size, high efficiency, good filtrate transparency and clarity, no material consumption, etc. It doesn't consume any filter paper, filter cloth or filter cartridges.


The filter can be widely applicable to:

Grease Industry (Such as crude oil filtration, gum oil filtration, hydrogenated oil filtration, winterization oil filtration, etc.)

Food Industry (Such as activated carbon decolorization of granulated sugar and glucose. clarification filtering of wine, juice, beverage, etc.),

Chemical Industry (Such as crystal separation in petrochemical industry, inorganic chemical industry, and organic chemical industry; separation of catalyzers, decolorization of chemical products, etc.)

Environmental Protection Industry (Such as water intake from rivers and lakes, supernatant purification of sewage treatment plant, purification of swimming pool water, etc.)

Click to expand to view the data
Technical Parameters
Model Filter area（㎡） Filter cake volume(L) Processing power（t/h） Workpressure（Mpa） Filtering cylinder volume(L) Import Export Overflow port Discharging outlet Cylinder diameter(mm) Barrel height(mm) Filter spacing（mm） Host weight（Kg） Projection area（mm）
Grease Resin Drinks
DZBL-2 2 30 0.4-0.6 1-1.5 1-2 0.1-0.4 120 DN25 DN25 DN100 400*3 1280 50 150 500×70
DZBL-4 4 60 0.8-1.2 2-3 2-4 250 DN40 DN25 DN125 500*3 1520 50 180 600×800
DZBL-7 7 105 1.4-2 3-5 4-8 420 DN40 DN25 DN150 600*3 1920 50 326 750×100
DZBL-10 10 150 2-3 5-8 5-10 890 DN50 DN25 DN200 800*4 2120 70 474 1000×1200
DZBL-12 12 240 2.4-3.6 6-9 6-12 1190 DN50 DN40 DN250 900*4 2220 70 554 1200×1300
DZBL-15 15 300 3-5 7-12 8-16 1580 DN50 DN40 DN250 1000*5 2370 70 815 1400×1500
DZBL-20 20 400 4-6 10-15 10-20 1770 DN65 DN40 DN250 1000*5 2670 70 910 1400×1500
DZBL-25 25 500 5-7 12-18 12-24 2200 DN65 DN40 DN300 1100*6 2740 70 1024 1500×1700
DZBL-30 30 600 6-9 14-22 15-30 2770 DN65 DN40 DN300 1200*6 2870 70 1165 1600×1800
DZBL-36 36 720 7-10 16-24 18-36 2870 DN80 DN50 DN300 1200*6 2970 70 1202 1600×1800
DZBL-40 40 800 8-12 20-30 20-40 3500 DN80 DN50 DN350 1300*6 3070 70 1342 1700×1900
DZBL-45 45 900 9-13 22-32 22-44 3630 DN100 DN50 DN350 1300*6 3270 70 1422 1700×1900
DZBL-52 52 1040 10-15 25-40 26-52 4380 DN100 DN50 DN350 1400*6 3370 75 1900 1800×2000
DZBL-60 62 1200 12-18 38-42 30-60 5100 DN100 DN50 DN400 1500*8 3530 75 2114 2000×2200
DZBL-70 70 1400 14-20 35-50 35-70 6940 DN125 DN50 DN400 1600*8 4220 80 2662 2200×2400
DZBL-80 80 1600 16-24 40-60 40-80 8300 DN125 DN50 DN400 1800*8 4220 80 3882 2400×2600


Full Service System

As leading filter press manufacturer and supplier with 16 years histoy, we have build full set of service system, mainly including pre-sales service, sales service and after-sales service.

  • Pre-sales Service

    After understanding the customer’s requirements for equipment, cost budget and other aspects in detail, we will recommend professional and customized solution for customers.

  • Sales Service

    Communicate with customers timely, and continuously improve the product solution in accordance with customer requirements.

  • After-sales Service

    We have mature after-sales service management system, inlcuding product installation, tech training service, spare parts, on-site maintenance, etc.
