Filter Area
50-500㎡Plate Quality
28-123Filter volume
736-8735LApplication:chemical industry, dyestuff, petroleum, ceramics, medicine,refine sugar, starch, paint, metallurgy ,sewage treatment and so on.

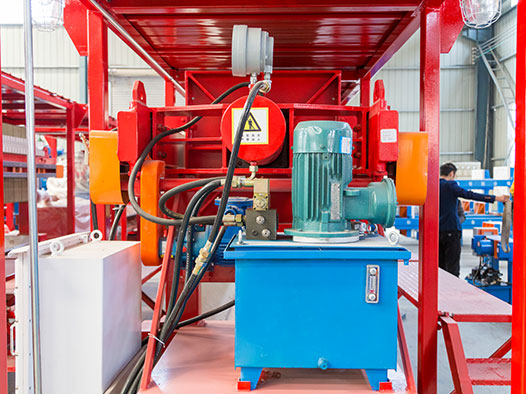

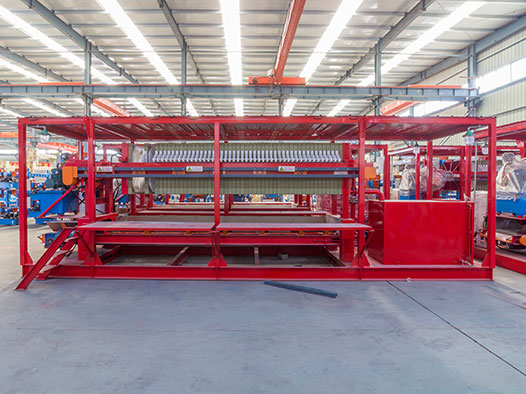

Product features: The skid mounted filter press integrates filter press, feed pump, pipeline and valve, squeeze pump, squeeze water tank, belt conveyor etc. on a mobile work plaftform. The whole machine has an all-in-one design, a reasonable layout and a high degree of automation. When the equipment arrives at the site, it can work only by completing the external pipeline and electrical connections, which minimizes on-site installation work and saves time and manpower. Because the skid filter press is a mobile design, the whole machine can be easily moved, and it can be used for multiple projects in different locations.
| Type | Filter area（m2） | Filter olate size（mm） | Cake tdickness（mm) | Filter chamber volume（L） | Plate NO.(PCS） | Filtration pressure(Mpa) | Motor power（KW） | Weight（Kg) | Dimension (L×W×H)(mm) |
| XGZY80/1250-35U | 80 | 1250×1250 | 35 | 1364 | 29 | 0.6 | 4.0 | 10900 | 4830×1800×1600 |
| XGZY100/1250-35U | 100 | 1250×1250 | 35 | 1680 | 37 | 0.6 | 4.0 | 11750 | 5440×1800×1600 |
| XGZY120/1250-35U | 120 | 1250×1250 | 35 | 2092 | 45 | 0.6 | 4.0 | 12600 | 6060×1800×1600 |
| XGZY150/1250-35U | 150 | 1250×1250 | 35 | 2547 | 55 | 0.6 | 4.0 | 13620 | 6820×1800×1600 |
| XGZY160/1250-35U | 160 | 1250×1250 | 35 | 2729 | 59 | 0.6 | 4.0 | 14470 | 7130×1800×1600 |
| XGZY200/1250-35U | 200 | 1250×1250 | 35 | 3457 | 73 | 0.6 | 4.0 | 15320 | 8200×1800×1600 |
| XGZY240/1280-35U | 240 | 1250×1250 | 35 | 4093 | 89 | 0.6 | 4.0 | 16170 | 9420×1800×1600 |
| XGZY250/1250-35U | 250 | 1250×1250 | 35 | 4276 | 91 | 0.6 | 4.0 | 17020 | 9570×1800×1600 |
| XGZY200/1500-35U | 200 | 1500×1500 | 35 | 3922 | 49 | 0.6 | 7.5 | 26120 | 7140×2200×2200 |
| XGZY250/1500-35U | 250 | 1500×1500 | 35 | 4463 | 61 | 0.6 | 7.5 | 26930 | 7730×2200×2000 |
| XGZY300/1500-35U | 300 | 1500×1500 | 35 | 5274 | 73 | 0.6 | 7.5 | 28160 | 8720×2000×1820 |
| XGZY350/1500-35U | 350 | 1500×1500 | 35 | 6221 | 85 | 0.6 | 7.5 | 29600 | 10110×2000×1820 |
| XGZY400/1500-35U | 400 | 1500×1500 | 35 | 7032 | 99 | 0.6 | 7.5 | 31500 | 11260×2000×1820 |
| XGZY450/1500-35U | 450 | 1500×1500 | 35 | 7844 | 111 | 0.6 | 7.5 | 33400 | 12250×2000×1820 |
| XGZY500/1500-35U | 500 | 1500×1500 | 35 | 8791 | 123 | 0.6 | 7.5 | 33380 | 13240×2000×1820 |
| XGZY600/2000-40U | 600 | 2000×2000 | 40 | 12000 | 85 | 0.6 | 1.1 | 54164 | 13030×3520×2500 |
| XGZY700/2000-40U | 700 | 2000×2000 | 40 | 14000 | 99 | 0.6 | 1.1 | 58300 | 14390×3000×2500 |
| XGZY800/2000-40U | 800 | 2000×2000 | 40 | 16000 | 107 | 0.6 | 1.1 | 62460 | 15770×3000×2500 |
| XGZY900/2000-40U | 900 | 2000×2000 | 40 | 18000 | 127 | 0.6 | 1.1 | 66620 | 17150×3000×2500 |
| XGZY1000/2000-40U | 1000 | 2000×2000 | 40 | 20000 | 141 | 0.6 | 1.1 | 70780 | 18530×3000×2500 |
As leading filter press manufacturer and supplier with 16 years histoy, we have build full set of service system, mainly including pre-sales service, sales service and after-sales service.
After understanding the customer’s requirements for equipment, cost budget and other aspects in detail, we will recommend professional and customized solution for customers.
Communicate with customers timely, and continuously improve the product solution in accordance with customer requirements.
We have mature after-sales service management system, inlcuding product installation, tech training service, spare parts, on-site maintenance, etc.
Please feel free to fill in the following form to get product information,price,service and other supports. You can also inquiry online or email us to dz@filterpress-china.cn ,we will reply to you within 24 hours as soon as possible.Thank You!
