Oil Filter Press

  • Filter Area

    3-700 ㎡

  • Models

    full models

  • Price

    factory price
Leave Message For Price Inquiry Online

Product Description

1.Oil filter press is a kind of solid-liquid separation filtration equipment, it is widely used for processing palm oil, coconut oil, mustard oil, sesame oil and other kinds of vegetable oil.

2.As leading filter press manufacturer and supplier with 20 years history in China, we have types of oil filter press for sale, including membrane filter press (mature technology in food industry), stainless steel filter press and high temperature resistance cast iron filter press (for high temperature needs), belt filter press, etc. We will provide customized solution according to your specific needs.

3.Our oil filter press is featured with esay operation, better dehydration effect, stable performance, long service life and other advantages. We have many successful projects in Singapore, Malaysia, Thailand, Phillipine, Vietnam, Pakistan, Russia, Uzbekistan, Kazakhstan, Colombia, Mexico, Peru, Chile, etc. etc.


Advantages of Oil Filter Press

Membrane filter press adopts a filter plate expansion design. Inject gas into the filter plate to expand and deform, squeeze the filter cake in the middle of the filter plate, thereby reducing the water content of the filter cake.

The filter plate adopts a slope design. Above the feed port design of the membrane filter press, the filter plate passing through the inclined plane makes the filtrate fully contact the membrane to maximize the filtration, increase the filtration speed and increase the work efficiency.

The structure of the filter plate. Each filter plate is composed of a combination plate and a polypropylene filter plate, and the combination plate is composed of two filter frames, which is equivalent to two filter cloths filtering at the same time, which not only facilitates the replacement of filter cloths, but also makes it more efficient Increased exponentially.

Click to expand to view the data
Technical Parameters
Model Filter press(m2) Plate size(mm) Cake tdickness(mm) Filter chamber volume(L) Plate NO(pcs) Filtration pressure(Mpa) Motor power(Kw) Weight(Kg) Dimensions L*W*H(mm) Foundation Size(mm)
L B D H
XG30/870-U 30 870*870 ≤35 498 23 ≥0.8 2.2 3046 3880*1250*1300 2920 700 1270 785
XG40/870-U 40 870*870 ≤35 623 29 ≥0.8 2.2 3593 4270*1250*1300 3300 700 1270 785
XG50/870-U 50 870*870 ≤35 789 37 ≥0.8 2.2 4057 4790*1250*1300 3820 700 1270 785
XG60/870-U 60 870*870 ≤35 955 45 ≥0.8 2.2 4597 5310*1250*1300 4340 700 1270 785
XG70/870-U 70 870*870 ≤35 1121 53 ≥0.8 2.2 5136 5830*1250*1300 4860 700 1270 785
XG80/870-U 80 870*870 ≤35 1287 61 ≥0.8 2.2 5636 6350*1250*1300 5380 700 1270 785
XG50/1000-U 50 1000*1000 ≤35 776 27 ≥0.8 4 4352 4270*1500*1400 3350 780 1400 870
XG60/1000-U 60 1000*1000 ≤35 943 33 ≥0.8 4 4480 4700*1500*1400 3780 780 1400 870
XG70/1000-U 70 1000*1000 ≤35 1109 39 ≥0.8 4 5263 5130*1500*1400 4210 780 1400 870
XG80/1000-U 80 1000*1000 ≤35 1275 45 ≥0.8 4 5719 5560*1500*1400 4640 780 1400 870
XG100/1000-U 100 1000*1000 ≤35 1608 57 ≥0.8 4 6555 6410*1500*1400 5490 780 1400 870
XG120/1000-U 120 1000*1000 ≤35 1941 69 ≥0.8 4 7466 7260*1500*1400 6340 780 1400 870
XG80/1250-U 80 1250*1250 ≤40 1560 29 ≥0.8 5.5 10900 4830*1800*1600 3960 850 1740 995
XG100/1250-U 100 1250*1250 ≤40 1975 37 ≥0.8 5.5 11750 5440*1800*1600 4570 850 1740 995
XG120/1250-U 120 1250*1250 ≤40 2391 45 ≥0.8 5.5 12600 6060*1800*1600 5180 850 1740 995
XG150/1250-U 150 1250*1250 ≤40 2911 55 ≥0.8 5.5 13620 6820*1800*1600 5950 850 1740 995
XG160/1250-U 160 1250*1250 ≤40 3119 59 ≥0.8 5.5 14470 7130*1800*1600 6255 850 1740 995
XG200/1250-U 200 1250*1250 ≤40 3847 73 ≥0.8 5.5 15320 8200*1800*1600 7325 850 1740 995
XG240/1250-U 240 1250*1250 ≤40 4679 89 ≥0.8 5.5 16170 9420*1800*1600 8550 850 1740 995
XG250/1250-U 250 1250*1250 ≤40 4783 91 ≥0.8 5.5 17020 9570*1800*1600 8700 850 1740 995
XG200/1500-U 200 1500*1500 ≤40 3809 49 ≥0.8 11 26120 7140*2200*1820 5870 1170 1990 1070
XG250/1500-U 250 1500*1500 ≤40 4723 61 ≥0.8 11 26930 7730*2200*1820 6860 1170 1990 1070
XG300/1500-U 300 1500*1500 ≤40 5637 73 ≥0.8 11 28160 8720*2200*1820 7850 1170 1990 1070
XG350/1500-U 350 1500*1500 ≤40 6551 85 ≥0.8 11 29600 10110*2200*1820 9090 1170 1990 1070
XG400/1500-U 400 1500*1500 ≤40 7618 99 ≥0.8 11 31500 11260*2200*1820 10240 1170 1990 1070
XG450/1500-U 450 1500*1500 ≤40 8532 111 ≥0.8 11 33400 12250*2200*1820 11230 1170 1990 1070
XG500/1500-U 500 1500*1500 ≤40 9446 123 ≥0.8 11 33380 13240*2200*1820 12220 1170 1990 1070
XG600/2000-U 600 2000*2000 ≤40 11901 85 ≥0.8 15 54164 13030*3000*2500 10610 1660 2000 1050
XG700/2000-U 700 2000*2000 ≤40 13838 99 ≥0.8 15 58300 14390*3000*2500 11920 1660 2000 1050
XG800/2000-U 800 2000*2000 ≤40 14945 107 ≥0.8 15 62460 15770*3000*2500 13240 1660 2000 1050
XG900/2000-U 900 2000*2000 ≤40 17713 127 ≥0.8 15 66620 17150*3000*2500 14560 1660 2000 1050
XG1000/2000-U 1000 2000*2000 ≤40 19651 141 ≥0.8 15 70780 18530*3000*2500 15880 1660 2000 1050


Full Service System

As leading filter press manufacturer and supplier with 20 years histoy, we have build full set of service system, mainly including pre-sales service, sales service and after-sales service.

  • Pre-sales Service

    After understanding the customer’s requirements for equipment, cost budget and other aspects in detail, we will recommend professional and customized solution for customers.

  • Sales Service

    Communicate with customers timely, and continuously improve the product solution in accordance with customer requirements.

  • After-sales Service

    We have mature after-sales service management system, inlcuding product installation, tech training service, spare parts, on-site maintenance, etc.

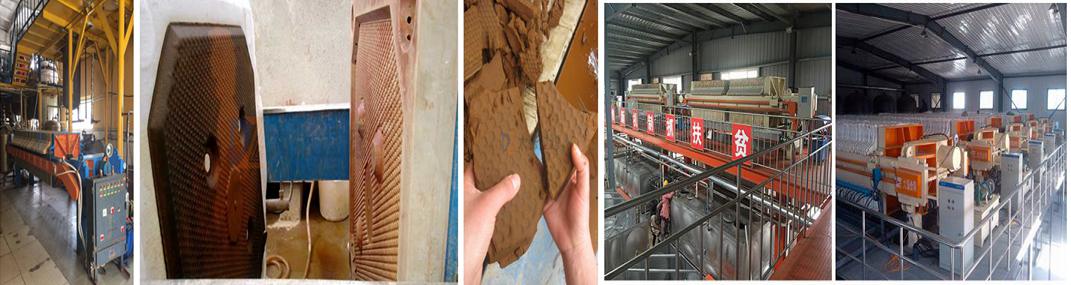

Successful cases
