Filter Area
50-500㎡Plate Quality
28-123Filter volume
736-8735LApplication : applicable to food industry, etc.

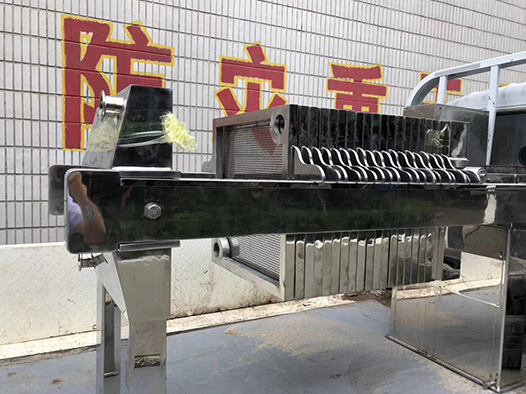

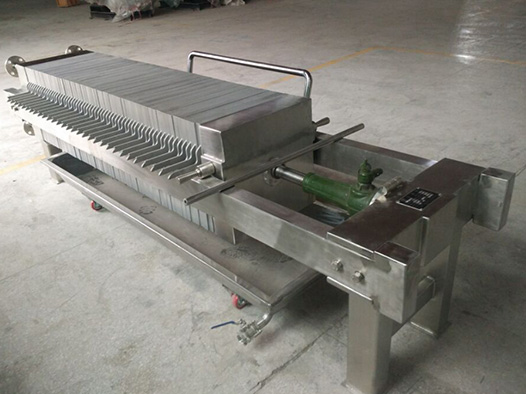

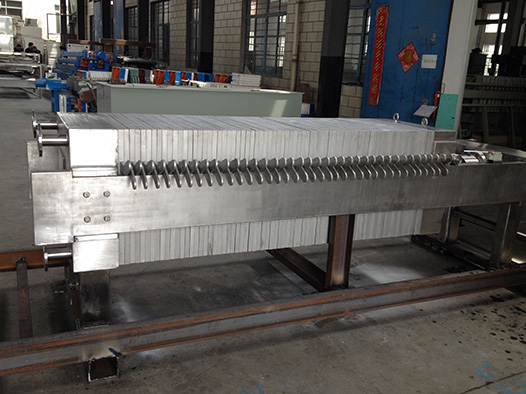

Features: The stainless steel filter press machine is made of 304 or 306 high-quality stainless steel materials, corrosion-resistant, durable, and the filter plate adopts a threaded structure, and different filter medias can be replaced according to different products of the user ( Optional filter material:microporous filter membrane , Filter paper, filter cloth, clarification plate, etc.), the sealing ring adopts two kinds of silica gel and fluorine rubber (acid and alkali resistant), no leakage and good sealing performance.
| Model | Filter press(m2 | Plate size(mm) | Cake thickness(mm) | Filter chamber volume(L) | Plate NO(pcs) | Number frame(pcs) | Filtration pressure(Mpa) | Weight(Kg) | Dimensions L*W*H(mm) |
| BAQ1/320 | 1 | 320×320 | 25 | 13 | 4 | 5 | 0.6 | 300 | 1050×700×680 |
| BAQ2/320 | 2 | 25 | 9 | 10 | 440 | 1405×700×680 | |||
| BAQ3/320 | 3 | 38 | 14 | 15 | 600 | 1650×700×680 | |||
| BAQ4/450 | 4 | 450×450 | 51 | 9 | 10 | 780 | 1680×880×900 | ||
| BAQ6/450 | 6 | 76 | 14 | 15 | 995 | 1980×880×900 | |||
| BAQ8/450 | 8 | 102 | 19 | 20 | 1250 | 2180×880×900 | |||
| BAQ10/450 | 10 | 122 | 24 | 25 | 1470 | 2430×880×900 | |||
| BAQ12/450 | 12 | 152 | 29 | 30 | 1700 | 2680×880×900 | |||
| BAQ16/450 | 16 | 203 | 39 | 40 | 2170 | 3180×880×900 | |||
| BAY4/450 | 4 | 51 | 9 | 10 | 850 | 2030×880×900 | |||
| BAY6/450 | 6 | 76 | 14 | 15 | 1070 | 2280×880×900 | |||
| BAY8/450 | 8 | 102 | 19 | 20 | 1950 | 2530×880×900 | |||
| BAY10/450 | 10 | 122 | 24 | 25 | 2170 | 2780×880×900 | |||
| BAY12/450 | 12 | 152 | 29 | 30 | 2400 | 3030×880×900 | |||
| BAY16/450 | 16 | 203 | 39 | 40 | 2870 | 3530×880×900 | |||
| BAQ10/610 | 10 | 550×550 | 122 | 15 | 16 | 2030 | 2180×950×1010 | ||
| BAQ12/610 | 12 | 152 | 19 | 20 | 2290 | 2380×950×1010 | |||
| BAQ15/610 | 15 | 189 | 24 | 25 | 2610 | 2630×950×1010 | |||
| BAQ20/610 | 20 | 250 | 32 | 33 | 3120 | 3030×950×1010 | |||
| BAY10/610 | 10 | 122 | 15 | 16 | 2730 | 2230×950×1010 | |||
| BAY12/610 | 12 | 152 | 19 | 20 | 2990 | 2430×950×1010 | |||
| BAY15/610 | 15 | 189 | 24 | 25 | 3310 | 2680×950×1010 | |||
| BAY20/610 | 20 | 250 | 32 | 33 | 3820 | 3080×950×1010 | |||
| BAQ15/630 | 15 | 630×630 | 189 | 18 | 19 | 2620 | 2325×950×1010 | ||
| BAQ20/630 | 20 | 250 | 24 | 25 | 3100 | 2630×950×1010 | |||
| BAQ30/630 | 30 | 377 | 37 | 38 | 4130 | 3280×950×1010 | |||
| BAY15/630 | 15 | 189 | 18 | 19 | 2870 | 2630×950×1010 | |||
| BAY20/630 | 20 | 250 | 24 | 25 | 3950 | 2930×950×1010 | |||
| BAY30/630 | 30 | 377 | 37 | 38 | 4980 | 3580×950×1010 | |||
| BAY30/800 | 30 | 725×725 | 442 | 22 | 23 | 5710 | 3150×1300×1300 | ||
| BAY40/800 | 40 | 595 | 30 | 31 | 7126 | 3630×1300×1300 | |||
| BAY50/800 | 50 | 748 | 38 | 39 | 8543 | 4110×1300×1300 |
As leading filter press manufacturer and supplier with 16 years histoy, we have build full set of service system, mainly including pre-sales service, sales service and after-sales service.
After understanding the customer’s requirements for equipment, cost budget and other aspects in detail, we will recommend professional and customized solution for customers.
Communicate with customers timely, and continuously improve the product solution in accordance with customer requirements.
We have mature after-sales service management system, inlcuding product installation, tech training service, spare parts, on-site maintenance, etc.
Please feel free to fill in the following form to get product information,price,service and other supports. You can also inquiry online or email us to dz@filterpress-china.cn ,we will reply to you within 24 hours as soon as possible.Thank You!
